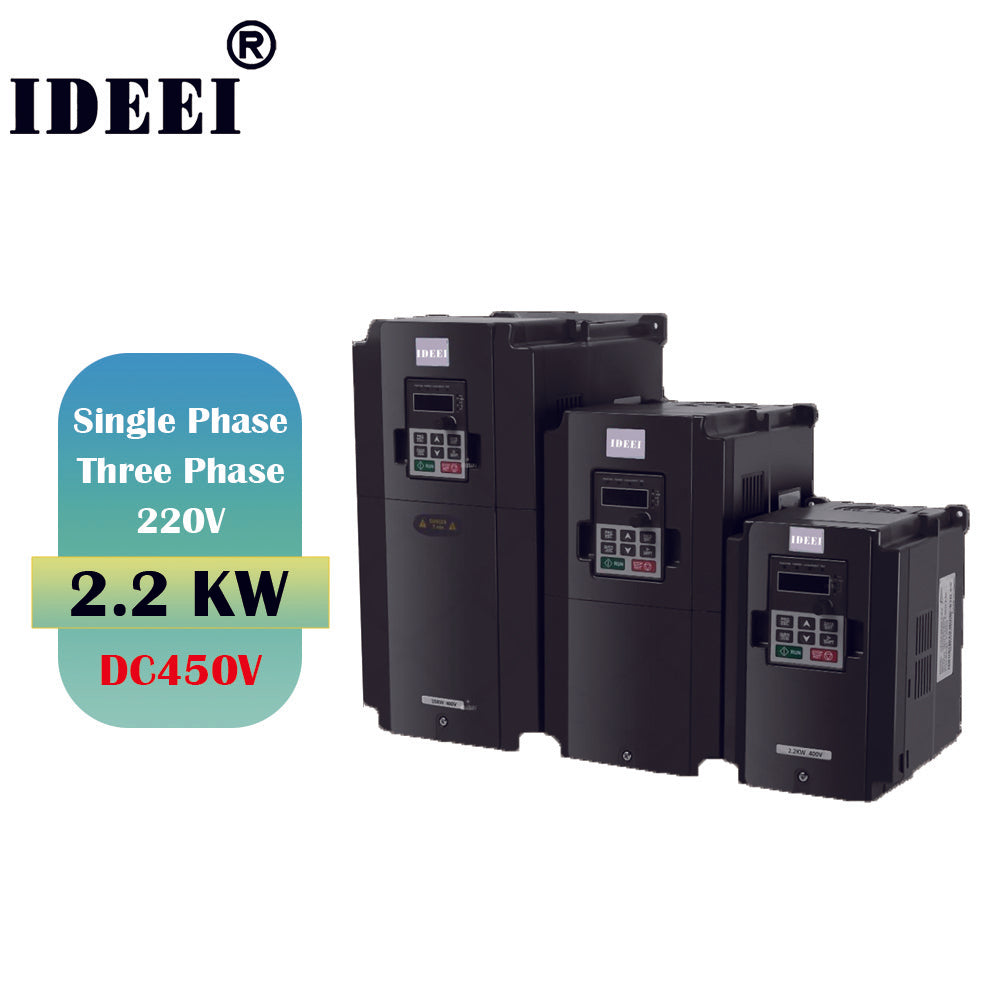

2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency
2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency
2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency
2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency
2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency

2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency

Product Description 　　100PV is specifically designed for photovoltaic water pumps, with high MPPT efficiency and low failure...
Vendor: IDEEI
$37.00
$37.00
Please hurry! Only 50 left in stock
Power Rate: 4kw DC900V
Subtotal: $37.00
10 customers are viewing this product
2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency

2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency

$37.00
2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency
2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency
2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency
2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency
2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency

2.2KW Single Phase Three Phase DC450V 100PV Mini Solar Pump Inverter | AC/DC Auto Switch | GPRS Remote Monitoring | 99% MPPT Efficiency

$37.00
Power Rate: 4kw DC900V
Description

Product Description

　　100PV is specifically designed for photovoltaic water pumps, with high MPPT efficiency and low failure rate. With the addition of ACDC function, it truly achieves seamless switching between AC and DC, achieving an MPPT efficiency of 99%.

Solar pumping VFD model Rated output power (Kw) Rated input current (A) Rated input current (A) Max. DC input current (A)
QB100-0R4G-SS2-PV 0.4 6.5 4.2 9
QB100-0R7G-SS2-PV 0.75 9.3 7.2 9
QB100-1R5G-SS2-PV 1.5 15.7 10.2 12
QB100-2R2G-SS2-PV 2.2 24 14 12
QB100-0R4G-S2-PV 0.4 6.5 2.5 9
QB100-0R7G-S2-PV 0.75 9.3 4.2 9
QB100-1R5G-S2-PV 1.5 15.7 7.5 12
QB100-2R2G-S2-PV 2.2 24 10 12
QB100-1R5G-2-PV 1.5 7.7 7.5 12
QB100-2R2G-2-PV 2.2 11 10 12
QB100-004G-2-PV 4.0 17 16 20
QB100-5R5G-2-PV 5.5 25 20 30
QB100-7R5G-2-PV 7.5 33 30 40
QB100-0R7G-4-PV 0.75 3.4 2.5 9
QB100-1R5G-4-PV 1.5 5.0 4.2 9
QB100-2R2G-4-PV 2.2 5.8 5.5 12
QB100-004G-4-PV 4.0 13.5 9.5 17
QB100-5R5G-4-PV 5.5 19.5 14 24
QB100-7R5G-4-PV 7.5 25 18.5 31
QB100-011G-4-PV 11 32 25 40
QB100-015G-4-PV 15 40 32 49
QB100-018G-4-PV 18.5 47 38 50
QB100-022G-4-PV 22 51 45 60
QB100-030G-4-PV 30 70 60 90
QB100-037G-4-PV 37 80 75 90
QB100-045G-4-PV 45 98 92 130
QB100-055G-4-PV 55 128 115 150
QB100-075G-4-PV 75 139 150 200
QB100-090G-4-PV 90 168 180 250
QB100-110G-4-PV 110 201 215 300
QB100-132G-4-PV 132 265 260 360
QB100-160G-4-PV 160 310 305 430
QB100-185G-4-PV 185 345 340 500
QB100-200G-4-PV 200 385 380 550

Recommended solar modules

Solar pumping VFD model Open-circuit voltage of solar module: 37±1V Open-circuit voltage of solar module: 45±1V
Module power±5Wp Modules per string * strings Module power±5Wp Modules per string * strings
QB100-0R4G-SS2-PV 250 11*1 300 9*1
QB100-0R7G-SS2-PV 250 11*1 300 9*1
QB100-1R5G-SS2-PV 250 11*1 300 9*1
QB100-2R2G-SS2-PV 250 11*1 300 9*1
QB100-0R4G-S2-PV 250 11*1 300 9*1
QB100-0R7G-S2-PV 250 11*1 300 9*1
QB100-1R5G-S2-PV 250 11*1 300 9*1
QB100-2R2G-S2-PV 250 11*1 300 9*1
QB100-1R5G-2-PV 250 11*1 300 9*1
QB100-2R2G-2-PV 250 11*1 300 9*1
QB100-004G-2-PV 250 11*2 300 9*2
QB100-5R5G-2-PV 250 11*3 300 9*3
QB100-7R5G-2-PV 250 11*4 300 9*4
QB100-0R7G-4-PV 250 18*1 300 15*1
QB100-1R5G-4-PV 250 18*1 300 15*1
QB100-2R2G-4-PV 250 18*1 300 15*1
QB100-004G-4-PV 250 20*1 300 16*1
QB100-5R5G-4-PV 250 18*2 300 15*2
QB100-7R5G-4-PV 250 18*2 300 15*2
QB100-011G-4-PV 250 18*3 300 15*3
QB100-015G-4-PV 250 18*4 300 15*4
QB100-018G-4-PV 250 18*5 300 15*5
QB100-022G-4-PV 250 18*6 300 15*6
QB100-030G-4-PV 250 18*8 300 15*8
QB100-037G-4-PV 250 18*9 300 15*9
QB100-045G-4-PV 250 18*11 300 15*11
QB100-055G-4-PV 250 18*14 300 15*14
QB100-075G-4-PV 250 18*19 300 15*19
QB100-090G-4-PV 250 18*22 300 15*22
QB100-110G-4-PV 250 18*27 300 15*27
QB100-132G-4-PV 250 18*38 300 15*38
QB100-160G-4-PV 250 18*46 300 15*46
QB100-185G-4-PV 250 18*53 300 15*53
QB100-200G-4-PV 250 18*57 300 15*57

Features

1.Effective protection functions, including PV over-voltage protection, over-current protection, and auto derating against over-temperature, ensure system reliability and safety under various operating conditions.

2.Advanced MPPT algorithms achieve 99% solar maximum power point tracking efficiency, optimizing energy harvest from photovoltaic panels throughout the day.

3.Integrated GPRS module supports remote monitoring and control via dedicated mobile application, enabling real-time system status checks and adjustments.

4.Automatic operation feature allows the solar pump controller to initiate or suspend functioning upon solar panel connection without requiring manual parameter configuration.

5.Boost module compatibility (for ≤2.2kW models) facilitates low-voltage pump operation, significantly reducing installation costs through minimized solar panel requirements.

6.Optional IP54-rated protective cabinet provides enhanced durability against environmental factors such as dust and water ingress.

Note:

AC and DC access at the same time need to be customized The synchronous water pump needs to be customized. The factory defaults to DC entry to control the asynchronous water pump.
