11PV MPPT Solar Pump Inverter Advanced solar pumping solution with AC/DC input, WiFi monitoring, and full motor...
Vendor: IDEEI
$173.36
$173.36
Please hurry! Only 50 left in stock
Power Rate: 4kw
Subtotal: $173.36
10 customers are viewing this product
11PV MPPT Solar Pump Inverter | AC/DC Hybrid | Single Phase 220V | 4KW | WiFi Control | Water Level Port | High Efficiency for PV Pumping Systems

11PV MPPT Solar Pump Inverter | AC/DC Hybrid | Single Phase 220V | 4KW | WiFi Control | Water Level Port | High Efficiency for PV Pumping Systems

$173.36
11PV MPPT Solar Pump Inverter | AC/DC Hybrid | Single Phase 220V | 4KW | WiFi Control | Water Level Port | High Efficiency for PV Pumping Systems
11PV MPPT Solar Pump Inverter | AC/DC Hybrid | Single Phase 220V | 4KW | WiFi Control | Water Level Port | High Efficiency for PV Pumping Systems
11PV MPPT Solar Pump Inverter | AC/DC Hybrid | Single Phase 220V | 4KW | WiFi Control | Water Level Port | High Efficiency for PV Pumping Systems
11PV MPPT Solar Pump Inverter | AC/DC Hybrid | Single Phase 220V | 4KW | WiFi Control | Water Level Port | High Efficiency for PV Pumping Systems
11PV MPPT Solar Pump Inverter | AC/DC Hybrid | Single Phase 220V | 4KW | WiFi Control | Water Level Port | High Efficiency for PV Pumping Systems
11PV MPPT Solar Pump Inverter | AC/DC Hybrid | Single Phase 220V | 4KW | WiFi Control | Water Level Port | High Efficiency for PV Pumping Systems

11PV MPPT Solar Pump Inverter | AC/DC Hybrid | Single Phase 220V | 4KW | WiFi Control | Water Level Port | High Efficiency for PV Pumping Systems

$173.36
Power Rate: 4kw
Description

11PV MPPT Solar Pump Inverter

Advanced solar pumping solution with AC/DC input, WiFi monitoring, and full motor protection for 24/7 operation

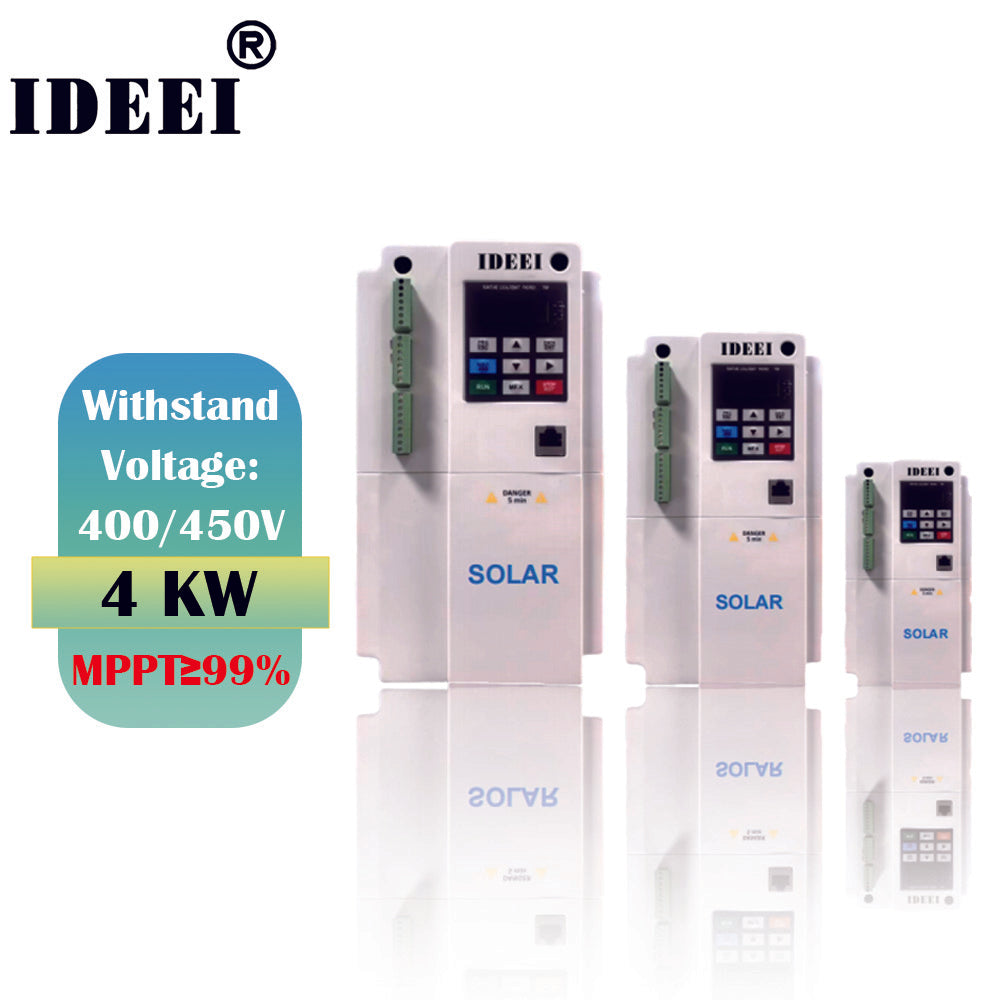

11PV MPPT Solar Pump Inverter - Product Visualization

⚠️ Important Safety Instructions

  • All grounding connections must be properly made according to local codes
  • Installation must be performed by qualified personnel only
  • Ensure proper cooling with at least 10cm space above and below the casing
  • Always disconnect input power before connecting the device
  • Derate output current by 10% for every 1,500m increment above 1,000m altitude

Key Features

  • MPPT technology with >99.6% efficiency
  • Dual power input (AC grid and DC solar) with seamless switching
  • WiFi monitoring and control capability
  • Automatic start/stop and sleep mode functionality
  • Water level control system
  • Dry run protection and pump loss phase protection
  • Digital control for fully automatic operation
  • LED/LCD display with remote control support
  • Strong lightning protection
  • GPRS function option for remote monitoring
  • Clock relay card for timing control

Technical Specifications

Parameter Specification
MPPT Efficiency > 99.6%
Output Frequency Range 0 - 600Hz
Motor Types Supported PMSM, Asynchronous motors
Input Voltage Range AC/DC input with seamless switching
Protection Rating IP20 (IP55/IP65 options available)
Operating Temperature -25°C to +60°C
Control Modes VF control, Vector control
Communication WiFi, RS485, Modbus compatible

2S Series Models (220VAC Input)

2S series models are designed for 220VAC pumps with MPPT voltage range of 260-375V. These models are suitable for smaller to medium-sized pumping applications.

11PV-0K7GB-25-M

Power: 0.75KW

Rated Current: 3.8A

MPPT Voltage: 260-375V

11PV-1K5GB-25-M

Power: 1.5KW

Rated Current: 7A

MPPT Voltage: 260-375V

11PV-2K2GB-25-M

Power: 2.2KW

Rated Current: 10A

MPPT Voltage: 260-375V

11PV-4K0GB-25

Power: 4.0KW

Rated Current: 17A

MPPT Voltage: 260-375V

4T Series Models (380VAC Input)

4T series models are designed for 380VAC pumps with MPPT voltage range of 486-750V. These models cover a wide range of power requirements from 0.75KW to 400KW.

Model Rated Current Output Voltage Applicable Pumps MPPT Voltage
11PV-0K7GB-4T-M 2.3A 0-380V 0.75KW 486 to 750V
11PV-1K5GB-4T-M 3.8A 0-380V 1.5KW 486 to 750V
11PV-2K2GB-4T-M 5.1A 0-380V 2.2KW 486 to 750V
11PV-0K7GB-4T 2.3A 0-380V 0.75KW 486 to 750V
11PV-1K5GB-4T 3.8A 0-380V 1.5KW 486 to 750V
11PV-2K2GB-4T 5.1A 0-380V 2.2KW 486 to 750V
11PV-4K0GB-4T 10A 0-380V 4.0KW 486 to 750V
11PV-5K5GB-4T 13A 0-380V 5.5KW 486 to 750V
11PV-7K5GB-4T 17A 0-380V 7.5KW 486 to 750V
11PV-011GB-4T 25A 0-380V 11KW 486 to 750V
11PV-015GB-4T 32A 0-380V 15KW 486 to 750V
11PV-018GB-4T 37A 0-380V 18KW 486 to 750V
11PV-022GB-4T 45A 0-380V 22KW 486 to 750V
11PV-030G-4T 60A 0-380V 30KW 486 to 750V
11PV-037G-4T 75A 0-380V 37KW 486 to 750V
11PV-045G-4T 91A 0-380V 45KW 486 to 750V
11PV-055G-4T 110A 0-380V 55KW 486 to 750V
11PV-075G-4T 150A 0-380V 75KW 486 to 750V
11PV-090G-4T 180A 0-380V 90KW 486 to 750V
11PV-110G-4T 220A 0-380V 110KW 486 to 750V
11PV-132G-4T 260A 0-380V 132KW 486 to 750V
11PV-160G-4T 320A 0-380V 160KW 486 to 750V
11PV-185G-4T 340A 0-380V 185KW 486 to 750V
11PV-200G-4T 380A 0-380V 200KW 486 to 750V
11PV-220G-4T 415A 0-380V 220KW 486 to 750V
11PV-250G-4T 470A 0-380V 250KW 486 to 750V
11PV-280G-4T 520A 0-380V 280KW 486 to 750V
11PV-315G-4T 585A 0-380V 315KW 486 to 750V
11PV-355G-4T 650A 0-380V 355KW 486 to 750V
11PV-400G-4T 725A 0-380V 400KW 486 to 750V

Note: IP55 high protection class models up to 22KW are available. OEM steel housing design for 0.75KW to 22KW models are optional.

Applications

Ideal for various water pumping requirements across multiple sectors:

Agricultural Irrigation
Livestock Watering
Remote Water Supply
Forestry Irrigation
Pond Management
Desert Control
Waste Water Treatment
Drinking Water Supply

Protection Features

Dry Run Protection
Phase Loss Protection
Overload Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overheating Protection
Lightning Surge Protection

Solar Array Selection Guide

Pump Voltage Inverter Model Recommended Vmp Recommended Voc Solar Array Power
110VAC 1S 130VDC 156VDC ≥1.3-2.0 × Pump Power
220VAC 2S 310VDC 372VDC ≥1.3-2.0 × Pump Power
380VAC 4T 540VDC 648VDC ≥1.3-2.0 × Pump Power
480VAC 4T 677VDC 812VDC ≥1.3-2.0 × Pump Power

Key Parameters for Solar Pump Control

Parameter Function Setting Range
PE-00 Solar Pump Control Mode 0: Disable, 1: MPPT1 (High Efficiency), 2: MPPT2 (High Stability)
PE-01 Solar Pump Control Options Vmp mode, Voc detection, Auto running
PE-16 Sleep Voltage Threshold 0.0-1000.0V
PE-17 Wake Up Voltage Threshold 0.0-1000.0V
PE-19 Stop Frequency (Low Speed) 0.00-300.00Hz
PE-22 Dry Run Protection Current 0.0-999.9A
PE-31 Water Tank Level Detection Digital/Analog sensor options

Need Technical Support or Custom Solutions?

Contact our technical team for customized solar pumping solutions and expert guidance

Request Technical Consultation

11PV MPPT Solar Pump Inverter | Technical Documentation

For detailed installation and operation instructions, refer to the complete operation manual
